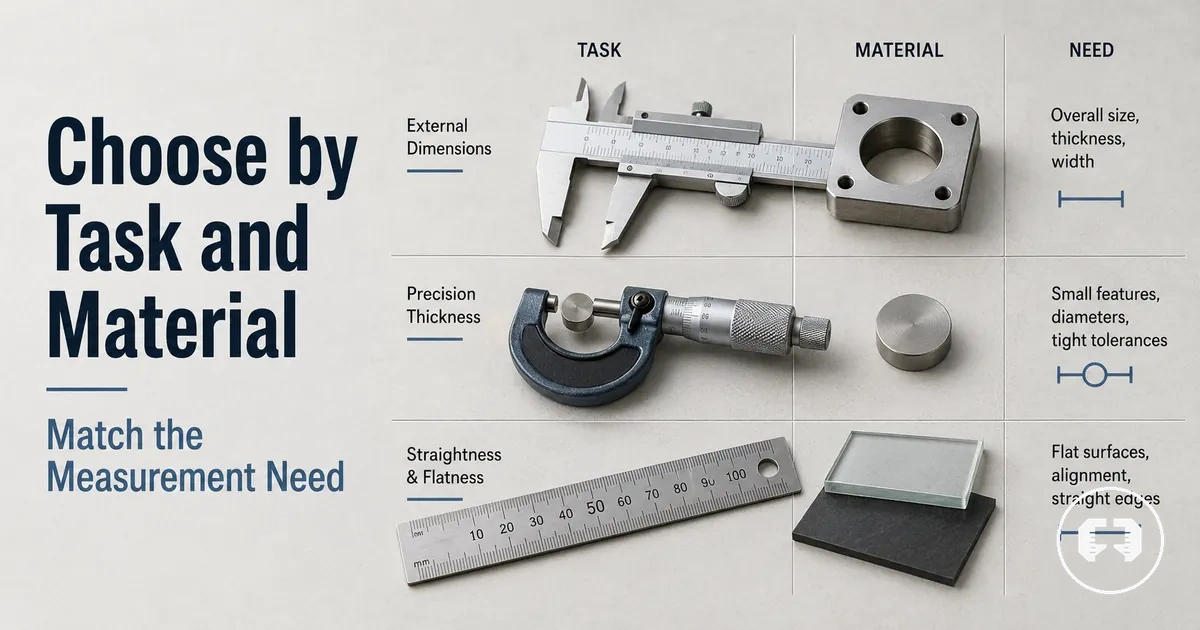

Precision measuring tool compatibility by task, material, and measurement need

Precision measuring tools compatibility refers to the fit between a measurement context and a tool’s capability to produce a usable and repeatable reading. It depends on how well the tool aligns with the task requirements, the material behavior of the workpiece, and the specific measurement need. In practice, compatibility is not a fixed property of the tool alone but a condition shaped by access, range, resolution, and tolerance requirements.

In real use cases, compatibility changes depending on whether the measurement involves small parts, restricted access, or different measurement types such as inside, outside, or depth checks. A stable reading may depend on how the tool contacts the surface, how much space is available for alignment, and whether the material is rigid like metal or more compressible like wood or soft components. These factors influence whether the measurement remains consistent across repeated attempts.

Compatibility is therefore determined by matching measurement conditions with tool capability rather than assuming a universal fit. When task complexity, material behavior, or tolerance demands change, the suitability of a precision measuring tool may also change. This section prepares the structured view of measurement context variables that define how compatibility should be evaluated.

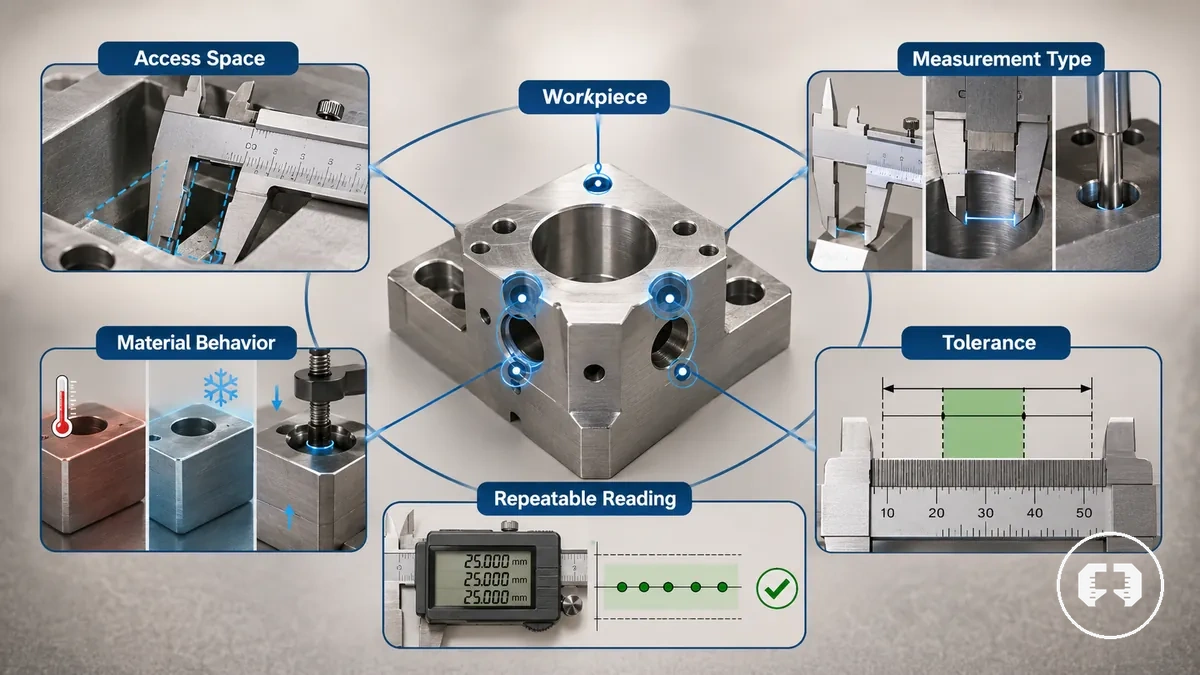

Measurement context that defines tool compatibility

Measurement context is the set of conditions that determines whether precision measuring tools can produce a useful and repeatable reading. It defines how tool compatibility relates to the workpiece, the measurement type, access space, tolerance requirement, and material behavior. In practice, it frames the fit conditions that control whether a stable repeatable reading can be achieved in a given situation.

A workpiece with limited access space, mixed material behavior, or tight tolerance requirement changes how a measurement must be performed. The measurement type, such as internal, external, or depth-based checking, further influences how precision measuring tools interact with the surface and reading method. In complex cases, users may refer to precision measuring tools overview for a broader context of tool categories before narrowing selection based on fit conditions.

• Workpiece condition — defines whether surface stability supports a repeatable reading or introduces variation.
• Measurement type — determines whether internal, external, or depth reading methods are required.
• Access space — affects whether the tool can physically align with the measurement point.
• Tolerance requirement — sets how precise the reading must be relative to acceptable variation.
• Material behavior — influences deformation, resistance, and measurement consistency.
• Resolution and reading method — impacts how clearly small differences can be interpreted.
• Fit conditions overall — combine all variables to determine tool compatibility in context.

This section evaluates fit conditions rather than ranking individual tool types, since compatibility depends on how measurement context variables interact rather than on a universal tool selection rule.

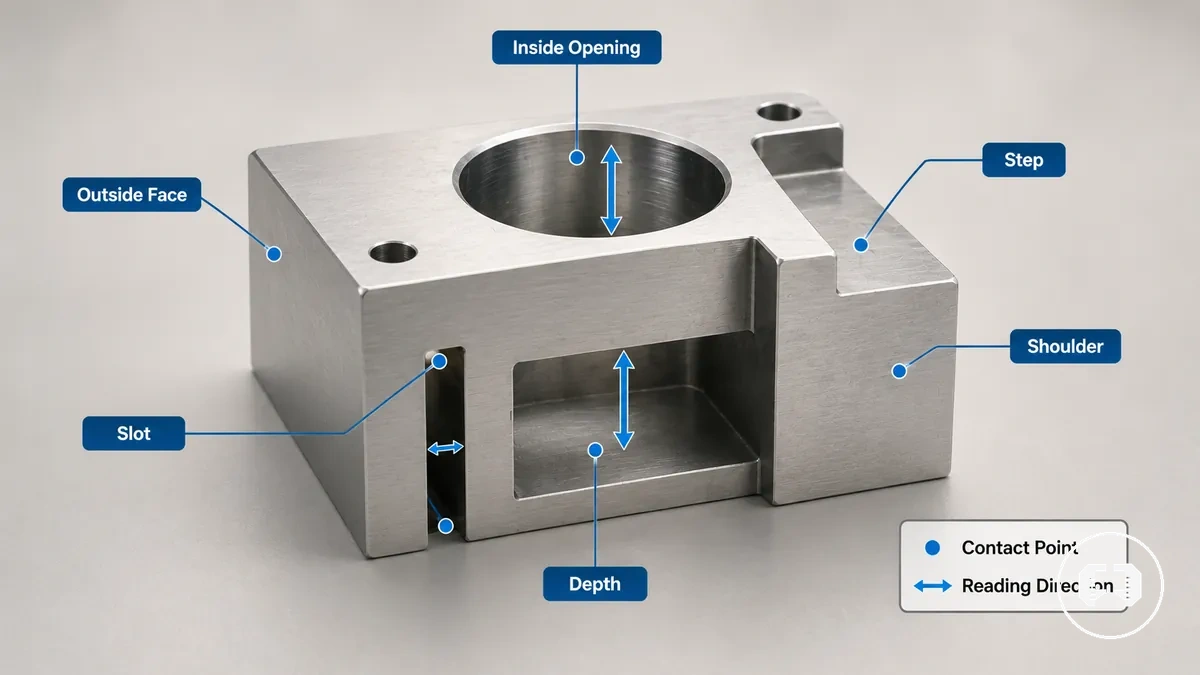

Measurement features the tool must reach

Measurement features define what a precision measuring tool must physically and functionally reach before accuracy or price becomes relevant. Tool compatibility depends first on reaching the required contact point and following the correct reading direction on the workpiece. Feature access must therefore be confirmed before evaluating measurement performance.

Outside faces usually allow direct contact, while inside openings require internal access and controlled alignment. Depth, step, shoulders, slots, small parts, and restricted contact areas each change the required contact point, reading direction, and tool reach. For example, a narrow slot or recessed shoulder may require different access capability than an exposed outside face, even when the measurement need is otherwise similar.

The table below groups common measurement features by their access requirement rather than by product type. Different feature-access conditions may lead to different tool families; see types of precision measuring tools for broader category guidance.

Feature to reach	Contact or access requirement	Tool capability to check	Decision effect
Outside faces	Direct surface contact	Stable external reach	Supports straightforward measurement
Inside openings	Internal access	Internal measuring reach	Requires inward contact
Depth	Vertical contact path	Depth measuring capability	Depends on consistent reach
Step and shoulders	Offset measuring surface	Edge contact alignment	Requires controlled positioning
Slots	Narrow contact area	Restricted tool reach	May limit measurement access
Small parts and restricted contact areas	Limited contact point	Controlled measuring access	May increase measurement risk

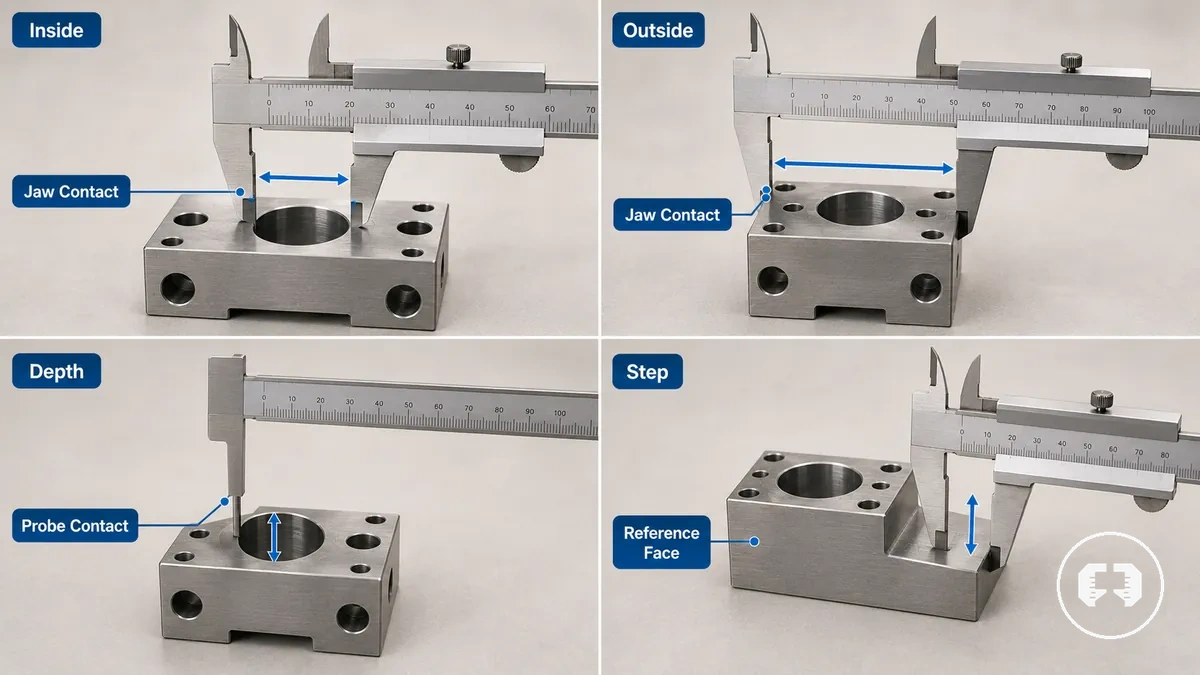

Inside, outside, depth, and step measurements

Inside, outside, depth, and step measurements use different contact references and alignment methods. Inside measurement and outside measurement rely on jaw contact, while depth measurement uses probe contact and step measurement depends on a stable reference face. Contact direction determines the measurement method, not the tool name.

The four measurement modes differ by contact method, alignment, and reference face, which can influence reading stability when contact changes. The contrast below summarizes the local contact requirements and the main reading risk without extending into tool selection.

• Inside measurement — Jaw contact on internal surfaces; main reading risk is misalignment inside the opening.
• Outside measurement — Jaw contact on external faces; main reading risk is uneven contact or skewed alignment.
• Depth measurement — Probe contact from a reference face; main reading risk is unstable probe alignment.
• Step measurement — Reference face supports step contact; main reading risk is reduced reading stability if the reference face is not seated consistently.

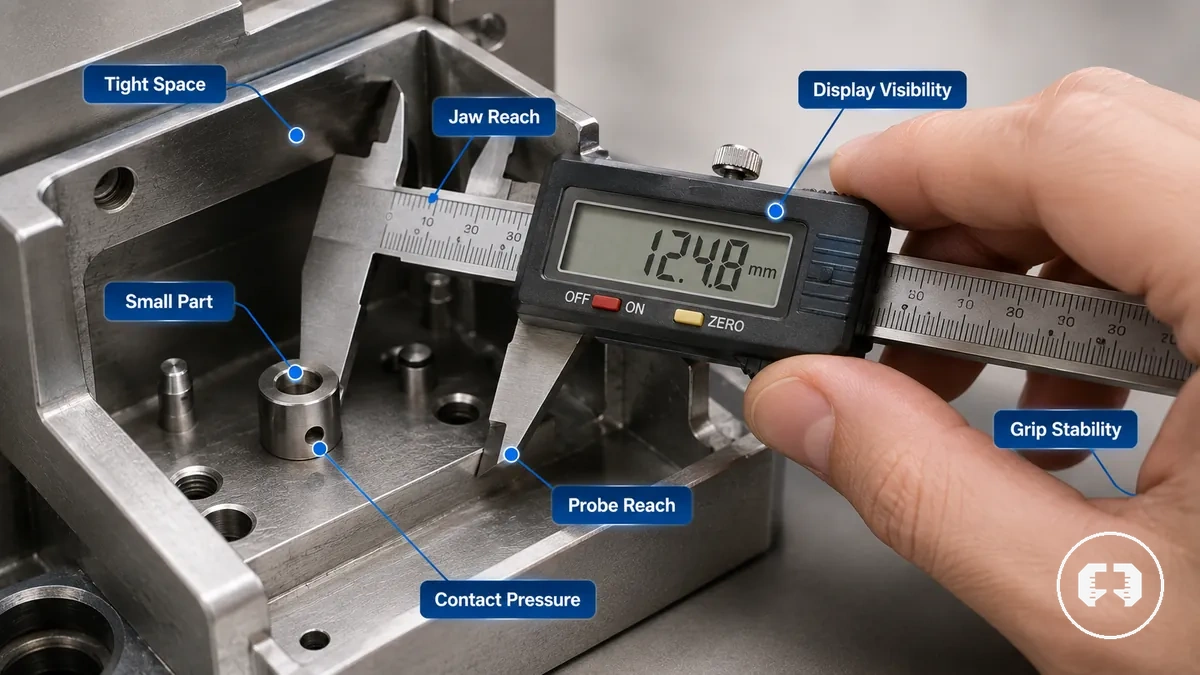

Small parts, tight spaces, and limited contact areas

When measuring small parts in tight spaces, compatibility depends on whether the tool can reach the contact point without reducing control or disturbing the workpiece. Restricted access changes jaw reach, probe reach, and handling conditions, so contact, display visibility, and repeatability should be evaluated before relying on a measurement.

Limited contact areas can make stable measurement more difficult when grip stability, viewing angle, or contact pressure changes during use. A tool may be suitable only if jaw reach or probe reach matches the confined work area and display visibility remains clear without changing alignment. Excessive contact pressure or movement of small parts may reduce repeatability, especially where restricted access limits stable contact.

Before measuring in restricted access conditions, verify the following:

• Reach — Confirm that jaw reach or probe reach can access the measurement point without obstruction.
• Stability — Check that grip stability keeps the workpiece from shifting during contact.
• Visibility — Ensure display visibility allows the reading to be viewed while maintaining alignment.
• Pressure — Apply only enough contact pressure to maintain contact and reduce the risk of disturbing the workpiece.
• Repeatability — Repeat the measurement under the same contact conditions to confirm consistency when access is limited.

Material and surface conditions that affect tool fit

Material behavior can change tool fit even when the measurement type remains the same. Surface condition influences contact pressure, wear at the contact point, and repeatability, so the same measurement task may require different handling for different workpiece materials. Material behavior therefore becomes part of the tool-fit decision rather than a separate consideration.

When measuring metal with a machined surface, surface finish, burrs, rough surfaces, or coatings may change how contact is established and maintained. By contrast, wood or another soft material may respond to contact pressure through compression risk, which can influence repeatability and increase the possibility of surface damage when pressure is not suited to the workpiece. Hard surfaces and compressible surfaces therefore require different contact handling because their material behavior affects the measurement differently.

Material condition	Measurement effect	Tool-fit decision
Metal with a machined surface	Surface finish, burrs, roughness, or coatings may influence contact consistency	Use contact that suits the surface condition and supports repeatability
Wood or soft material	Compression risk and possible surface damage may increase with higher contact pressure	Use measuring pressure that matches the material behavior and measurement need

When measurement results vary, review the material behavior before changing the measuring approach. Matching contact pressure to the surface condition may improve repeatability when the workpiece remains stable and the contact method is appropriate for the material.

Metal, machined parts, and hard work surfaces

When measuring metal, machined parts, and a hard surface, stable contact and careful alignment are the primary local conditions for a reliable reading. A machined face may support consistent contact, while tolerance demand determines whether greater resolution is needed for the measurement. Stable contact remains the key criterion because surface condition can influence repeatability.

When readings vary, review the metal surface before changing the measuring approach. Burrs, rough edges, or changes in surface finish may affect alignment and increase the risk of reading error, while heat from recent handling or contact wear may influence measurement conditions in some situations. A higher-resolution tool may be appropriate only when tolerance demand justifies it rather than for every metal measurement.

• Surface finish — A smoother machined surface may support more consistent contact and alignment.
• Burrs — Burrs or rough edges can affect contact points and should be considered before interpreting a reading.
• Thermal handling — Heat from recent handling may influence measurement conditions until the workpiece stabilizes.
• Alignment — Maintain stable contact with the hard workpiece to support repeatability when tolerance demand is higher.

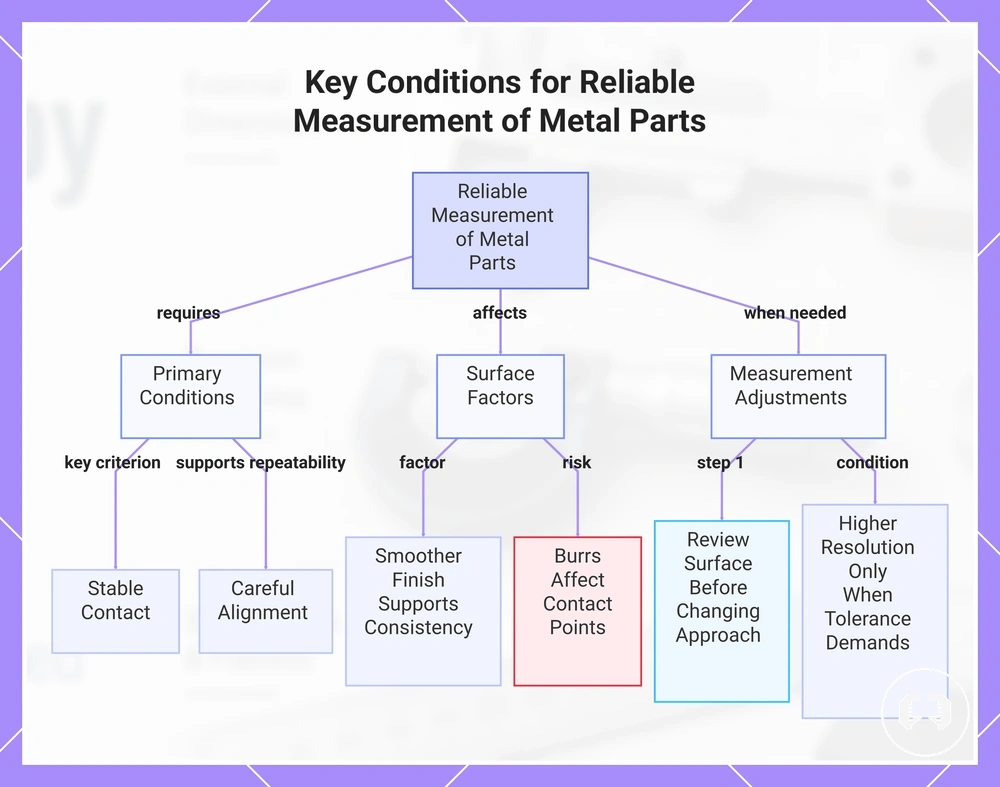

This chart shows the primary conditions, surface factors, and adjustment steps for obtaining reliable measurements on metal, machined parts, and hard work surfaces.

Wood, soft materials, and compression-sensitive surfaces

When measuring wood, soft materials, or other compression-sensitive surfaces, measuring pressure can influence the reading because the workpiece may deform under contact. Surface texture, grain, flexible parts, and moisture may also affect contact conditions, depending on the material and its surface state. Compared with a hard-edge reading on a hard surface, a compressible surface requires gentler interpretation because compression risk can influence repeatability.

When readings vary, first consider whether pressure consistency or surface variation is affecting the measurement. Wood grain, soft plastics, and other flexible parts may respond differently to contact, and surface indentation may occur when measuring pressure exceeds what the material can resist. Tolerance expectations should therefore reflect the workpiece condition rather than assume identical behavior across all materials.

Before interpreting a measurement on a compression-sensitive surface, check the following:

• Measuring pressure — Apply consistent contact to reduce unnecessary variation.
• Surface texture — Consider whether grain or an uneven surface may influence the contact point.
• Part movement — Confirm that flexible parts remain stable during measurement.
• Tolerance expectations — Match expectations to the material condition when compression or indentation may affect repeatability.

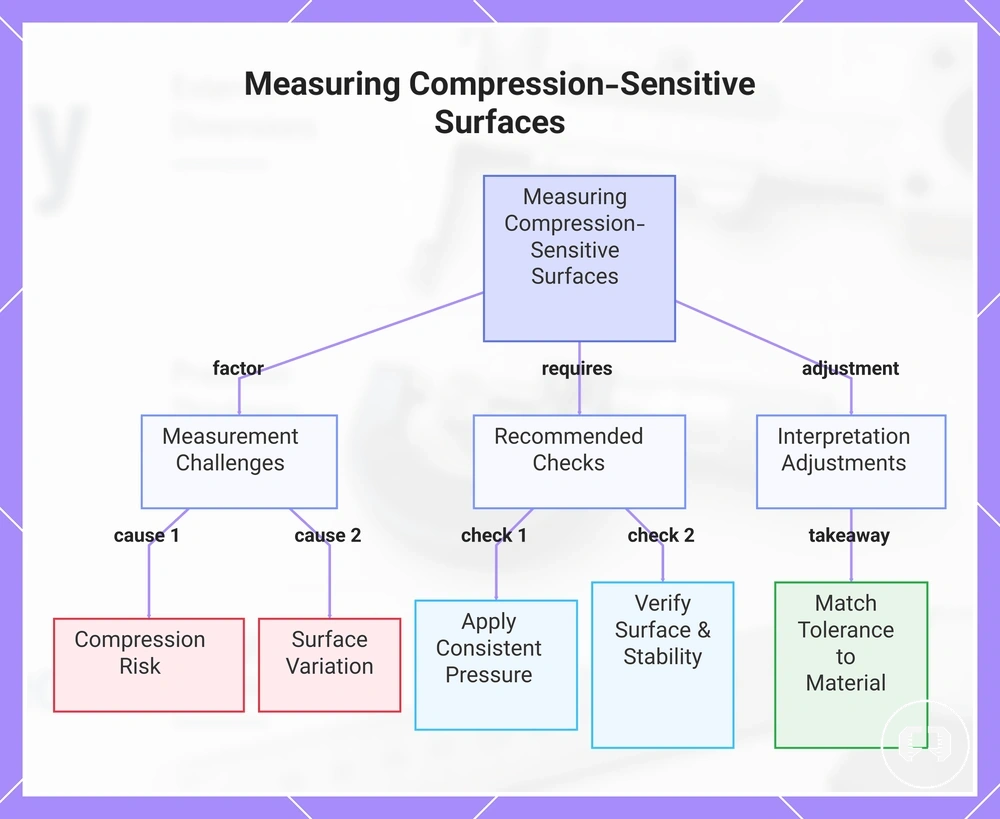

This chart shows the main factors affecting measurement accuracy on compressible surfaces and the recommended checks to ensure reliable readings.

Range, resolution, and tolerance limits for the measurement need

Measurement capability depends on matching the tool's range, resolution, and tolerance to the required measurement and its acceptable variation. A measuring tool is suitable only when these criteria support the intended decision rather than simply displaying a value. Capability should therefore be evaluated against the measurement need, not by a single specification.

Range determines whether the required measurement fits within the usable stroke while leaving a practical margin for stable positioning. When the measuring span approaches the end of the usable stroke, consistent contact and repeatability may become more difficult, depending on the measurement conditions.

Resolution determines the readable increments, while tolerance defines the allowable variation that remains suitable for the decision being made. Repeatability helps confirm that readings remain consistent under similar conditions. For a more detailed explanation of these related criteria, see measurement range and tolerance factors.

Higher resolution alone does not compensate for poor access, incorrect contact, or unsuitable material fit, so these criteria should be evaluated together rather than independently.

Criterion	What to check	Why it matters	Decision effect
Range	Required measurement fits within the usable stroke and practical margin	Supports complete measurement coverage	Determines whether the measurement can be completed appropriately
Resolution	Readable increments match the measurement need	Helps distinguish meaningful differences	May support clearer decision-making when appropriate
Tolerance	Allowable variation matches the task requirements	Keeps the reading relevant to the intended decision	Helps determine whether the result is sufficient for the application
Repeatability	Consistent readings under similar conditions	Reduces variation between repeated measurements	Supports confidence in measurement decisions

Measurement range, stroke margin, and probe reach

Measurement range must cover the required value, but physical reach must also suit the workpiece. A suitable tool needs enough usable range, probe reach, and jaw depth to access the measurement point with a practical stroke margin. Measurement range defines the scale, while usable range determines whether the measurement can actually be performed.

When clearance is limited or workpiece geometry restricts physical access, nominal range alone may not be sufficient. For example, a tool may have an adequate measurement range but still be unable to reach a recessed feature if probe reach, probe length, jaw depth, or available clearance is limited. Consider these sizing criteria together:

• Measurement range and usable range — Confirm the required measuring span fits within the usable range while leaving a practical stroke margin.
• Jaw depth — Check that throat depth or jaw depth provides enough physical access to the contact point.
• Probe reach — Ensure probe length is suitable when the measurement location is recessed or difficult to access.
• Clearance and workpiece geometry — Verify that surrounding features allow the tool to reach and align with the measurement area.

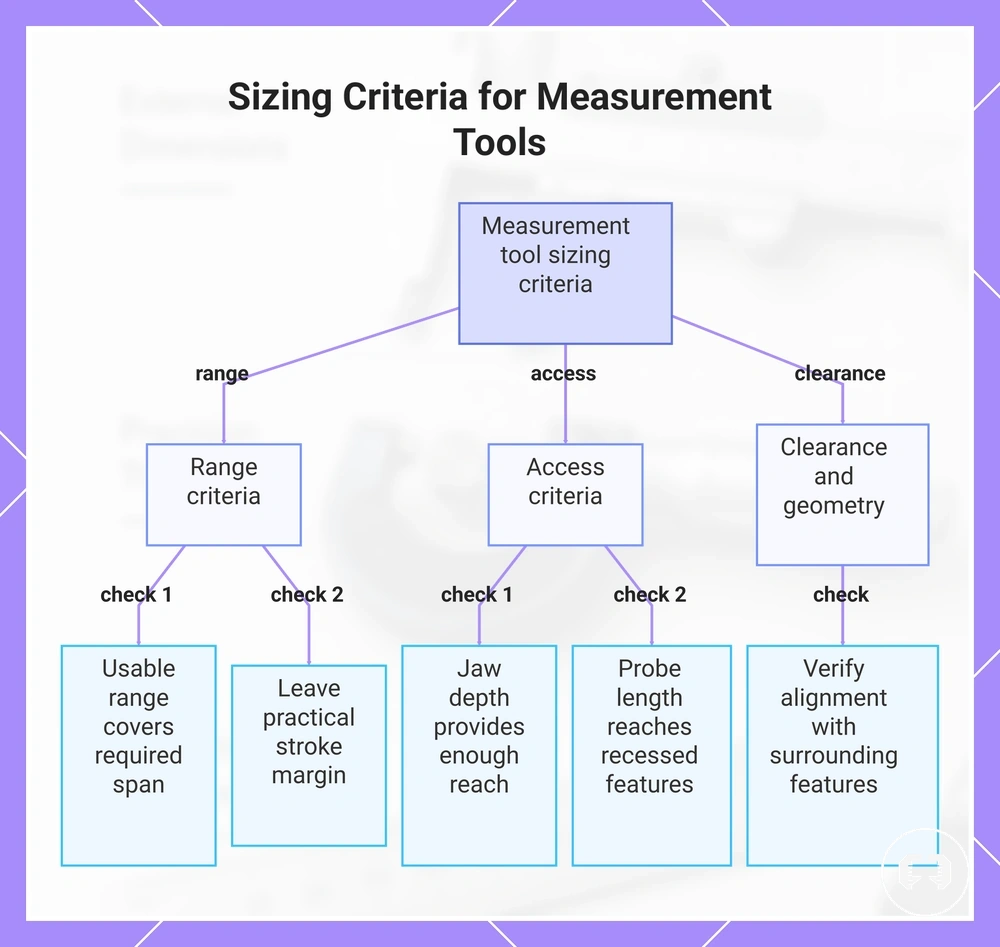

This chart outlines the three key criteria to check when selecting a measurement tool: usable range, physical access (jaw depth and probe reach), and clearance with workpiece geometry.

Tolerance demand and readable resolution

Tolerance demand and readable resolution must be evaluated together when determining whether a measurement is suitable for its intended purpose. The reading increment should support the required tolerance, while repeatability helps determine whether similar measurements remain consistent. Tolerance demand therefore provides the context for interpreting readable resolution.

When the tolerance band is narrow, readable resolution alone may not be sufficient if operator readability or repeatability limits consistent interpretation. A finer reading increment may support the measurement only when it aligns with the context-specific acceptable error and the tool can produce repeatable readings. Compare these criteria together rather than relying on display detail alone.

Criterion	Decision role
Reading increment and readable resolution	Should match the tolerance demand so the displayed or scale increment supports the required tolerance.
Repeatability	Shows whether similar measurements remain consistent under comparable conditions.
Decision implication	Suitability depends on the relationship between the tolerance band, operator readability, repeatability, and context-specific acceptable error rather than on finer display detail alone.

Tool families matched to measurement needs

Tool families should be matched to the measurement need rather than selected by category name alone. The appropriate tool family depends on the measurement feature, material condition, range, access, tolerance, and any constraint that affects the decision outcome. A broadly useful measuring instrument family may be enough for general tasks, while a specialized tool type may be safer when a specific constraint limits reliable measurement.

Measurement features and physical access help distinguish tool families. Calipers can support inside, outside, depth, and step measurements across many general tasks, while micrometers are often considered when small dimensions and repeatable checks require closer control. Depth gauges, indicators, and gauges become more relevant when depth, alignment, or another specialized constraint is the primary measurement need.

Use the comparison below to relate the measurement need to a suitable fit category instead of treating one tool family as universally appropriate. For a broader category comparison, compare tools by use case.

Tool family	Best-fit measurement need	Main constraint	Decision signal
Calipers	Inside, outside, depth, and step measurements	Access, range, and tolerance requirements	Suitable when one tool can address multiple measurement features.
Micrometers	Small dimensions and repeatable checks	Limited measuring range	Consider when tighter control of a specific dimension is required.
Depth gauges	Depth measurements	Probe reach and clearance	Consider when depth is the primary measurement feature.
Indicators and gauges	Alignment, comparison, or specialized measurement tasks	Application-specific setup	Useful when the measurement need depends on a specialized constraint.

Select the tool family by matching the measurement need to the governing constraint instead of assuming one tool type fits every task. A more specialized tool may be safer only when feature access, tolerance, repeatability, or another measurement condition justifies it. For the next step in the decision process, see how to choose measuring tools.

The products below are useful examples for comparing available options. Before buying, check that the compatibility criteria, key features, and product details match your needs.

Calipers for inside, outside, depth, and step checks

Calipers fit mixed inside checks, outside checks, depth checks, and step checks when the measurement need can be handled through the jaws, depth rod, and step faces within the tool's usable range. They are useful when one measuring instrument must move between contact modes without changing tool families. Caliper suitability is local to the feature, access clearance, and required reading quality.

For inside checks and outside checks, the jaws must make stable contact while operator alignment keeps the reading consistent. For depth checks, the depth rod must reach the bottom of the feature from a stable reference face, and for step checks the tool must seat correctly against the step face. Calipers may be insufficient when access clearance is limited, the required range or resolution is beyond the tool's capability, or the measurement needs more specialized repeatability than a general caliper check can provide.

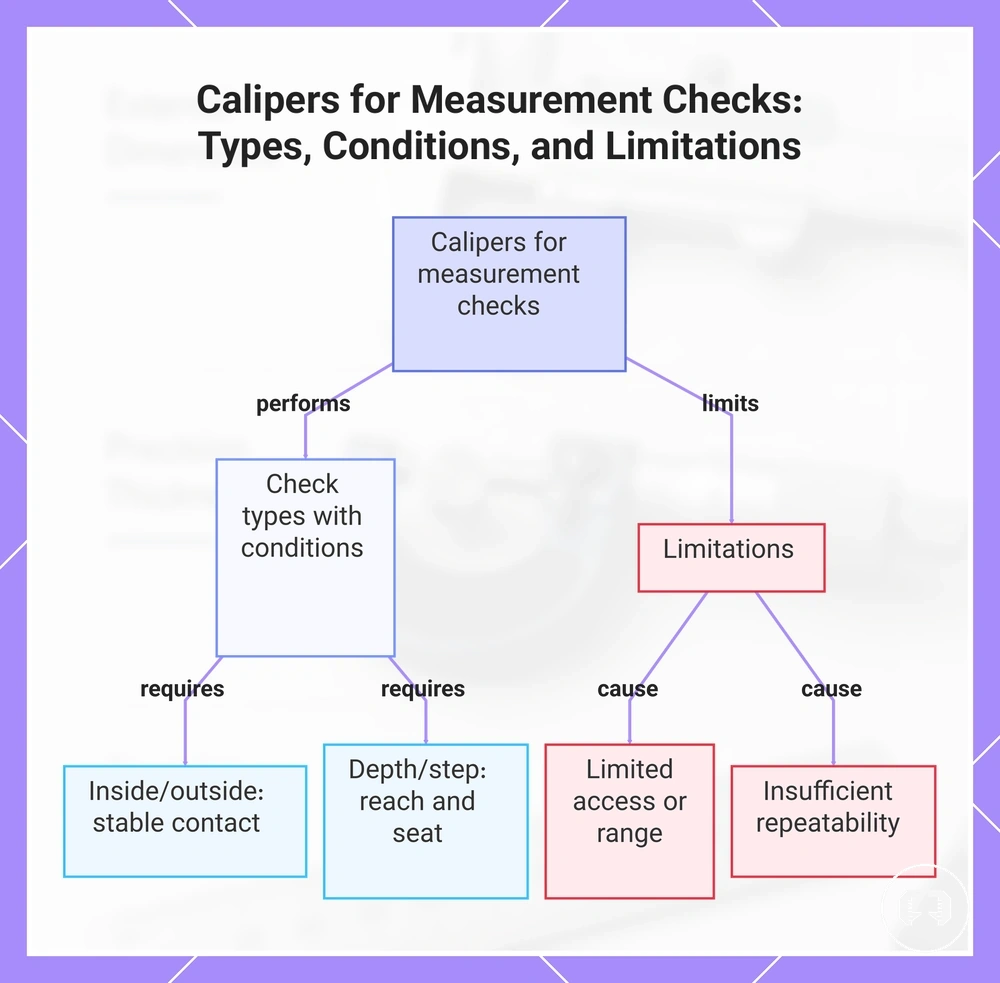

This chart outlines the main measurement checks calipers can perform, the conditions required for each, and the key limitations that may make calipers insufficient.

Micrometers and gauges for small dimensions and repeatable checks

Micrometers and gauges fit small dimensions and repeatable checks when controlled contact geometry and consistent setup are more important than general-purpose versatility. Micrometers use defined contact faces, while gauges rely on gauge references to repeat the same measurement condition. This approach may be more suitable when tolerance demand depends on repeatable checks of small dimensions.

Repeatability and contact geometry drive this choice.

Tool subtype	Primary selection criterion	Local limitation
Micrometers	Controlled contact faces for small dimensions and repeatable checks	May be less suitable when broader access or multiple measurement modes are required.
Gauges	Gauge references and repeatable setup for repeated measurement	Suitability depends on the measurement task and reference condition rather than replacing general-purpose tools.

Contact geometry, repeatable setup, and small-part stability can support consistent measurement when they match the application. Micrometers and gauges may be appropriate when tolerance demand justifies a more controlled measurement method, but the choice depends on the feature being measured and the limitations of the measurement task.

When one measuring tool is not enough

One measuring tool may not be enough when a single instrument cannot satisfy feature access, material behavior, range, and tolerance within the same measurement task. Multiple tools are justified by different measurement constraints rather than by owning more equipment. A supporting tool is appropriate only when a missing capability or a verification reading is needed to improve confidence.

When a task combines inside and depth checks, small parts with tighter tolerance demand, or material-sensitive surfaces, a second tool may provide the missing capability instead of replacing the first one. A single caliper may be sufficient for general measurement tasks, while a supporting micrometer, gauge, or depth tool may be useful when contact geometry, repeatable setup, or a verification reading becomes more important. If you need simpler starting guidance before deciding whether another tool is necessary, see beginner-friendly precision measuring tools.

Use this checklist to decide whether a supporting tool is justified:

The products below are useful examples for comparing available options. Before buying, check that the compatibility criteria, key features, and product details match your needs.

• Feature access — Can one measuring tool reach every required measurement feature?
• Material behavior — Does the workpiece require a different contact method because of its surface or material response?
• Range and tolerance — Does the required range or tolerance exceed the practical capability of the current tool?
• Verification reading — Would a second measurement method improve confidence in the result?
• Beginner decision — Is the limitation caused by the measurement task rather than unfamiliarity with the measuring approach?

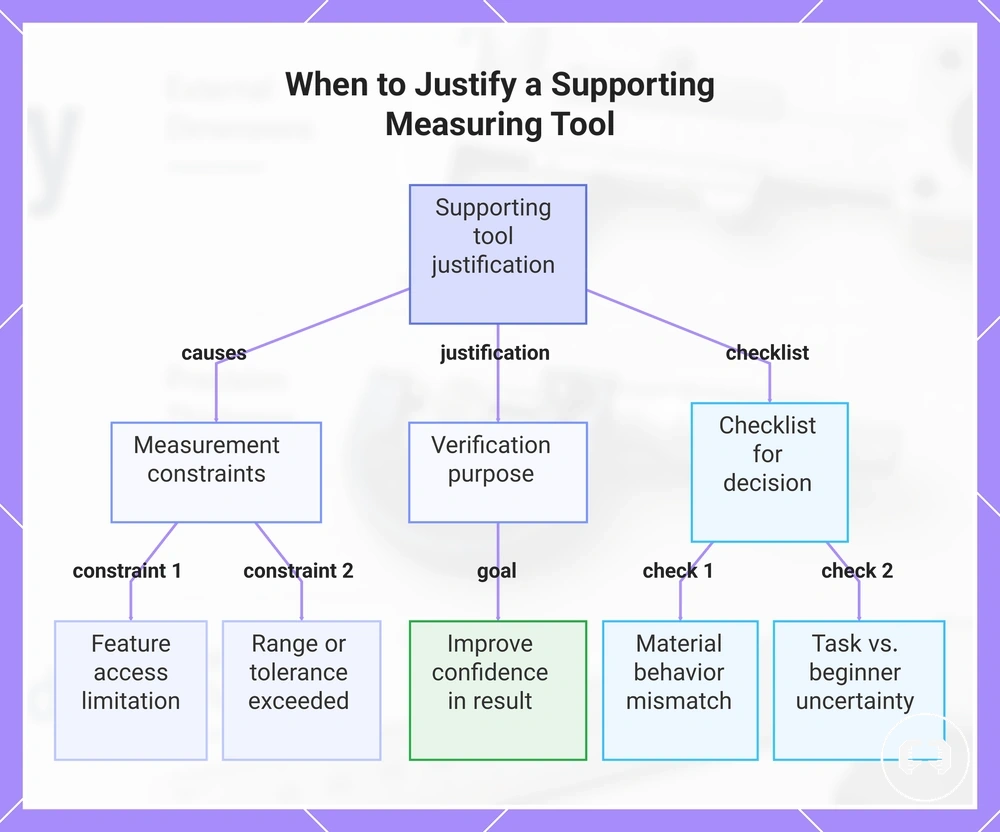

This chart shows the key constraints that justify using a supporting measuring tool, helping you decide when a single instrument is insufficient.
